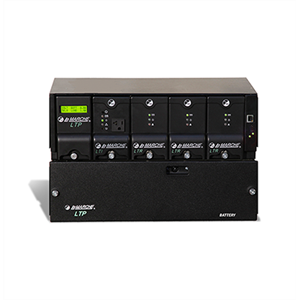

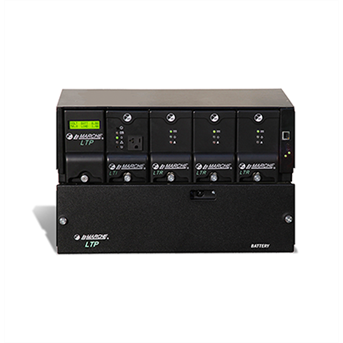

LTP Low Power Rectifier

Rectifier

Modular Switchmode Rectifiers

Output :
Voltage: 12, 24V, or 48 VDC
Current: 10 Amps (12 and 24 VDC) and 7.5 Amps (48 VDC)

Input:
Single-Phase: 102 - 264 VAC
Frequency: 45 - 65 Hz

Rated Power:
560W - 1.7 kW

Applications:
5G / 4G / Datacom
Radio Base Stations/ Cell Sites
Mobile Switching Center (MSC)
Distributed Antenna Systems (DAS)
Microwave Transmission / Switches
Fiber Optics / FTTX
Individual Base Transceiver (BTS)

The La Marche LTP system offers a complete DC power solution in a compact package configuration. LTP system can be installed in standard 19 inch or optional 23 inch rack or cabinet. The LCD controller allows easy adjustments of output voltage, alarms and communication settings. This advanced controller supports distribution, alarm contacts, battery test, load current and battery charge current limit. The parallel operation nature of the rectifiers is ideal for N+1 redundant installation.

The compact design of the system uses high efficiency rectifiers to reduce space requirements and installation cost. The DC distribution can be comprised of either GMT fuses or output terminals.

Standard Features:
High Frequency Switchmode Circuity.
Universal Input Range (102-264 VAC).
Power Factor > 0.99.
Efficiency > 90%.
Forced Load Sharing.
Modular, Hot Pluggable Design.
Four Module Positions.
DC Distribution (GMT).
Battery Charge Control.
Load and Battery Current Monitoring.
Form “C” Dry Alarm Contacts LED Status Indicators LCD Display.
19” Rack or Wall Mount AC Cord.
2 Year Warranty.
