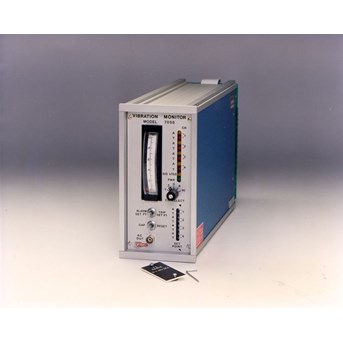

VITEC 7058 4-Channel Vibration Monitor

Vibration Monitor

The 7058 4-Channel Vibration Monitor measures the vibration level of one to four points on rotating equipment located up to 1,000 feet from your central control room, ideally suited for monitoring multiple points on large equipment like turbines and multi-stage pumps. Can be configured to: (1) accept signals from acceleration transducers, velocity transducers or non-contact probes; (2) condition signals to monitor in acceleration (g’s), velocity (in/sec) or displacement (mils); and (3) low-pass, bandpass and high-pass filters for each channel to allow you to monitor for a particular problem or to remove unwanted signals generated by nearby machines.

A single analog meter allows you to view the vibration level, alarm and trip setpoint for each channel, and can be set to display the highest vibration level of the four channels. Front panel LEDs give immediate indication when alarm and trip setpoints have been exceeded, or when power or a transducer signal has been lost. AC and DC signal outputs and multiple relays allow for connection to external devices for alarm or automatic shutdown.

Transducer Input
Accelerometer
Non-Contact Probes
Velocity Transducer
Ranges
Various
Measurement Mode
Acceleration, g’s (Acceleration input only)
Displacement (Accelerometer, Velocity transducer or Non-contact probe input)
Velocity in/sec (Accelerometer or Velocity transducer input)
Relay
One common alarm relay for all channels
One common probe fault relay for all channels (not functional for Accelerometer inputs except 4072/4073).
One common trip relay for all channels
Relay Contact Ratings
5A @ 120V AC, 2A @ 28V DC non-inductive, epoxy sealed.
Relay State
Alarm, trip and probe fault relays are latching and normally de – energized below setpoint (standard)
Optional: Relays energized below setpoint (failsafe)
Limit
Independently adjustable alarm and trip setpoint for each channel, 0 – 100% full scale.
Time Delay
One-second fixed alarm and trip delay, up to 10 seconds on special order.
Start-up Attenuation
Remote contact closure by user provides start-up attenuation of 3:1 for all channels.
Operating Temperature Range°F
+32 to +130F (0 to +54C), 0 – 95% relative humidity non-condensing.
Meter Accuracy
± 2%
Input Power
115V AC, 50/60 Hz (Standard)
220V AC or 24V DC (Optional).
Limit Designations
Green LED for power on.
Yellow alarm, and red trip LED for each channel
Yellow LED for signal loss (not functional for accelerometer inputs except 4072/4073)
Output (AC)
Front panel BNC jack provides AC signal for analysis, proportional to transducer input for selected channel.
Analog Output
0-1V, 0-5V or 4-20mA DC
Optional Accessories
(412554-258) 30-second start up time delay

(79904-137A) Dust and Liquid Tight Cover
