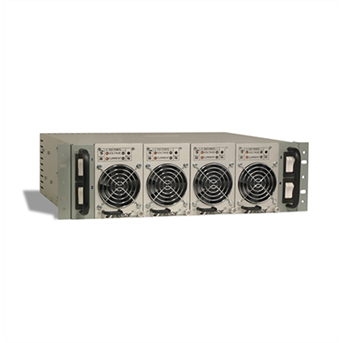

TPM Modular Rectifier

Rectifier

High Frequency (4.5 kW/Shelf)

Output :
Voltage: 12, 24, or 48 VDC
Current: 30 Amps (12 and 24 VDC) and 15 Amps (48 VDC)

Input:
Single-Phase: 102-264 VAC
Frequency: 47-63 Hz

Rated Power:
12 VDC: 375W per module / 1,500 Watts per Cage
24 and 48 VDC: 750W per module / 3,000 Watts per Cage

Applications:
5G / 4G / Datacom
Radio Base Stations/ Cell Sites
Mobile Switching Center (MSC)
Distributed Antenna Systems (DAS)
Microwave Transmission / Switches
Fiber Optics / FTTX
Individual Base Transceiver (BTS)

The La Marche TPM (Total Power Module) Switchmode Rectifier Systems are compact self contained Power Systems that provide the Modular Power that today’s Telecommunications, Process Control and Utility Substation applications require. The TPM Switchmode Rectifer is the building block of these reliable systems utilizing advanced switching technology. Its filtered output provides the clean power required for sensitive loads. The TPM is rated at 750 watts and available in 24V (30 amps) and 48V (15 amps) versions. A 12V TPM module is also offered and rated at 375 watts (30 amps). The Rectifier modules are hotswappable plug-in type. Replacement is swift and simple, and achieved without affecting the integrity of the system.

The universal input voltage range of 102-264VAC and frequency of 47-63Hz is ideal for power demands throughout the world. The AC input and DC output wiring of the Rectifiers can be done either in pairs from the same side of the cage or as a complete system. A convenient AC input cord (6 ft long, 20A rated) is supplied to power each pair of TPMs Rectifiers per cage. The DC output wiring is done by hardwiring to the provided busbar. Flexibility is given to hardwire a single connection for all Rectifiers or for each pair of Rectifiers per cage. This allows for custom field installations and gives greater system flexibility to suit the customer needs and preferences. TPM Systems are factory configured with one to four Modules in a single Cage. Distribution Modules consisting of either GMT Fuses or Breakers can share a Cage with the Rectifiers to form a complete Power System.


Standard Features:

High Frequency Switchmode Circuitry provides High Power Density.
Hot Plug-In feature provides easy replacement without disturbing System operation.
24 and 48VDC Versions –750 Watts Output Power.
12VDC Version–375 Watts Output Power.
19” and 23” Rack M ounting (using TPC cages).
Universal Input Voltage Range from 102-264VAC and Frequency Range of 47-63Hz.
AC Input Breaker Mounted on Cage for each TPM.
Output Voltage Adjustment Potentiometer.
Test Points for Measuring Output Current and Voltage using a Precision Multi-Meter.
Current Limiting Circuitry of 105% maximum (factory adjusted).
Power Factor Correction better than 0.95 within 20-100% of rated load.
Filtered/Battery Eliminator Design–less than150mVp-p, 32dBRN “C” message weighted with or without Batteries.
82% Efficiency within 50 to 100% of rated load.
Forced Load Sharing Circuitry (10% of rated load).
Soft Walk-in Circuit.
Over Temperature and Voltage Protection.
Rectifier Failure Alarm with (1) set of Form “C” contacts with Light (Alarm will initiate for either Low Voltage, High Voltage Shutdown, Low DC Current, Rectifier Failure or AC Power Failure/AC Breaker Tripped).
6ft (1.83m) 20Amp Power Cord supplied with Cage for every (2) TPM modules.
2-year Warranty.
