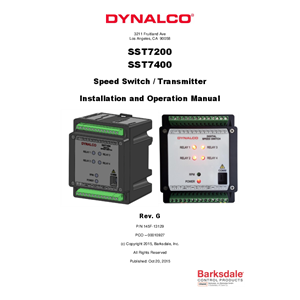

SST7400D Speed Switch/Transmitter w/ 4 – 20 mA Output & 4 Relay Trips

Speed Switch

SST-7200, SST-7400
SST-7200D & SST-7400D
Product Data Sheet
Instrumentation & Controls
Speed Switch / Transmitter
• Accepts 2 or 3-wire speed sensors
• 0 - 50 KHz input frequency range
• 4 – 20 mA output (isolated)
• 0 – 5 / 0 – 10 VDC linear output
• 50 msec relay response time
• 2 or 4 SPDT relays
• Failed (open) pickup sensing
• Square wave repeater output
• 10 – 36 VDC input supply power
• Available input isolation transformer
• PC programmable over USB port
• Front Keypad programmable
(for models with LCD Display)
• –I suffix:
Isolated RPM input from the power supply
ground by more than 300V peak
• –AC suffix (for models with LCD Display):
AC supply voltage to use for the
VAC L / VAC N terminals (see Electrical specifications)
SST-7200(D) & SST-7400(D) accept a pulsed input and provide a 4-20 mA output that is very
accurate and stable with temperature changes representing speed of rotating machinery for a
local panel meter or PLC analog input card. They also provide 2 “SST-7200(D)” and
4 “SST-7400(D)” quick relay responses to over/under speed conditions. Applications include
speed measurement & overspeed protection of industrial engines, turbomachinery and pumps.

SPECIFICATIONS
Electrical:
Supply Voltage: 10 – 36 VDC, maximum 5 Watts (standard)
–AC suffix: Only for models with LCD Display.
AC (and DC) supply voltage on terminals VAC L & VAC N.
115 to 280 VAC & 115 to 400 VDC, with maximum 10 Watts.
Input Types: 2-wire magnetic pickup (variable reluctance)
3-wire Hall-Effect
3-wire amplified VR type
–I suffix: Isolated RPM input from the power supply ground by more than 300V peak
Input Sensitivity: 25 mV min – 50 VRMS max
Proportional Output: Fully isolated 4 – 20 mA (sourced)
Plus 0 – 5 VDC or 0 – 10 VDC
0-1 mA linear output for instrument display
Relays: SPDT contacts rated 6 Amps at 28 VDC or 115 VAC
Display Information:
RPM, Alarms, Settings (RPM signal, setpoints / relay logic, analog input,
security, relay test, setpoint log, and display)
Mechanical:
DIN rail mount (standard 35 mm)
Environmental:
Operating temperature range
-40°C to +70°C
Storage temperature range
-40°C to +80°C
HOW TO ORDER
Specify part number as follows:
2 setpoints
SST-7200 with LED
SST-7200D with Display
SST-7200-I with LED, Isolated RPM input
SST-7200D-I with Display, Isolated RPM input
SST-7200D-AC with Display, VAC supply power
SST-7200D-I-AC with Display, VAC supply power
& Isolated RPM input
4 setpoints
SST-7400 with LED
SST-7400D with Display
SST-7400-I with LED, Isolated RPM input
SST-7400D-I with Display, Isolated RPM input
SST-7400D-AC with Display, VAC supply power
SST-7400D-I-AC with Display, VAC supply power
& Isolated RPM input
