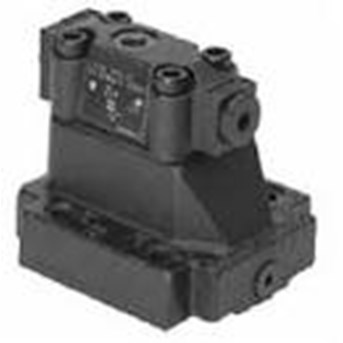

PARKER KURODA CHECK VALVE - C4V10-5303B110

Check Valve
General Description
Series C4V hydraulically pilot operated check valves
allow free flow from A to B. The counter-flow direction
is blocked.
When pressure is applied to control port X, the ring
chamber flow from B to A is released.
Up to four different pilot control ratios are available
(see Ordering Information).
Check valves allow free flow from A to B. The counter
direction is blocked. The C4V series are equipped with
a leak-free seat type cartridge.
Operation
When no pressure is applied to the X-port, the flow
from B to A is blocked, because the pressure in B is
also in effect on top of the poppet.
Pressurizing the X port relieves the area on top of the
poppet to the drain port and allows flow from B to A.
The seat design of the C4V valve series provides leakfree separation of port A and B in the closed position.
