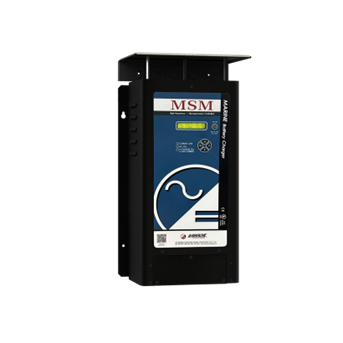

MSM Switchmode Battery Charger

Battery Charger

Smart High Frequency Switchmode Charger

Output :
DC Voltage: 12 or 24 VDC
DC Current: 10 - 100 Amps

Input:
Single-Phase: 102 - 264 VAC
Frequency: 45 - 65 Hz

Applications:
Marine

The La Marche MSM Series is a Smart High Frequency Switch Mode charger specifically developed for Marine and Engine Starting applications. MSM series incorporates Power Factor Correction (PFC) Circuitry with a wide input voltage range in order to accommodate many marine charging applications.

The MSM has an Integrated Battery Charge Divider / Isolator which provides connections for charging up to three independent batteries simultaneously with a three-stage charge cycle. MSM’s filtered output is suitable to charge different types of batteries for Marine/Industrial applications. This series is equipped with an LCD display for ease of navigation through the configurations menu. The LCD also displays Input AC voltage, Output DC Voltage & Current, and Alarm Status. The front of the unit provides three status LED indicators for the overall status of the system. The MSM charger is built in a robust, non-corrosive enclosure that addresses harsh environments, meeting stringent safety and regulatory standards. MSM chargers can be used inside engine rooms as this series is ignition protected 33 CFR 183.410 compliant.

Standard Features:

Smart Microprocessor Controlled High Frequency Charging Technology.
Single Phase AC Input 102-264VAC, 45-65Hz.
Complete Isolation from AC to DC.
LCD Digital Voltmeter & Ammeter.
Current Limit Protection.
Filtered Output for VRLA (Gel-Cell & AGM) Batteries.
Battery Isolator (Charge Divider allows for charging up to three Batteries Simultaneously).
Input & Output Fuses.
On/Off Switch with Disable Option.
AC Voltage Metering.
Conformal Coated Circuit Boards.
Internal or External Temp. Compensation w/Disable Option (24ft Probe Included).
Audible Charger Failure Alarm with LED Indicator and Form “C” Dry Relay Contacts.
IP22/NEMA Type 2 (with dripshield).
33 CFR 183.410 - Ignition Protection.
Corrosion Resistant.
Meets ABS & USCG Requirements.
CE Certified.
2-Year Warranty.
