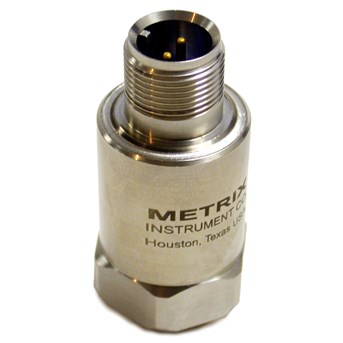

Metrix ST6917-153-00 406846/LT Vibration Trasnmitter

Vibration Transmitter
SPECIFICATIONS
Vibration Range:
• 4 to 20 mA output proportional to acceleration (ST6911)
and velocity (ST6917), see “Ordering Option A”
• Non standard ranges available
Frequency Response:
• Velocity: 2 - 1000 Hz
• Acceleration: 3 - 10000 Hz
Accuracy: 2% (Repeatability)
Axis Orientation: Any
Supply Voltage (Vs): 11 to 30 VDC, Non-polarity sensitive, IPT®
Isolation: 500 Vrms, circuit to case
Electrical Connection: MIL style 2-pin connector
Maximum Load Resistance (R): R = 50 x (Vsupply-11) W
Service Temperature Rating: -40°F to 100°C (-40°F to 212°F)
Enclosure Materials: 316 SS
Enclosure Environmental Rating: NEMA 4X, IP 67
Approvals: CE marked

ST6917 - - -
B Mounting
0 1/4-28 UNF
1 M6 x 1.0
A B C
A A A Full Scale
1 2 1 1.0 ips (25.4 mm/s) pk
1 2 2 0.5 ips (12.7 mm/s) p
1 2 3 2.0 ips (50.8 mm/s)pk
1 2 4 1.6 ips (40.6 mm/s) pk
1 2 6 0.8 ips (20.3 mm/s) pk
1 5 1 1.0 ips (25.4 mm/s) RMS
1 5 2 0.5 ips (12.7 mm/s) RMS
1 5 3 2.0 ips (50.8 mm/s) RMS
1 5 4 1.6 ips (40.6 mm/s) RMS
1 5 6 0.8 ips (20.3 mm/s) RMS
C Agency Certification
0 No Hazardous Area Approval, CE
1 No Hazardous Area Approval
A A Example: ST6917-151-1-0 = 1.0 in/s (25.4mm/s) RMS, M6 x 1.0, No Hazardous
Area Approval
Optional mounting stud:
Metrix P/N 3719-007
(1/4 - 28 UNF to M6 x 1.0)
