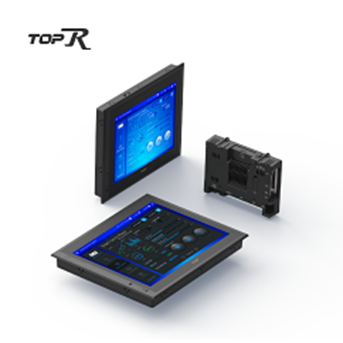

M2I HMI TOUCH PANEL -TOPRD1520X + TOPRP20D

Specifications
You can check the detailed specifications of the product in the catalog.

Display
Display Type: 15" TFT Color
Color: 16M Colors
Resolution: 1024 x 768
Serial COM1
RS-232C, RS-422/485 Asynchronous +5Vdc PWR
Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even
Baud rate: 2400~115.2kbps
Connector: DSUB 9pin x 1
Serial COM2
RS-232C, RS-422/485 Asynchronous
Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even
Baud rate: 2400~115.2kbps
Connector: DSUB 9pin x 1
Serial COM3
RS-485 Asynchronous
Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even
Baud rate: 2400~115.2kbps
Connector: 3.5mm 3pin x 1
Ethernet
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX
Connector: RJ-45 x 2
USB Host
USB 2.0 Compatible, Output 5Vdc/0.5A
Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol)
Connector: USB Type A x 2
USB OTG
USB 2.0 Compatible, Output 5Vdc/0.5A, Max 3m
Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol)
Connector: USB Micro-B(Front) x 1
SD Card
SD Card Slot x 1, SDHC(MAX 32GB)
Option Module
EtherCAT, CAM32
HDMI Output
HDMI v1.4a, HDMI Output, Max. Resolution: 1920 x 1080 at 60Hz
Connector: HDMI x 1
Video Input
Decodes NTSC, PAL or SECAM composite video, S-Video
Connector: RCA socket x 1
Audio Output
Stereo output
Connector: 3.5mm Audio socket x 1
WiFi
2.4G: 2.4000GHz～2.4835GHz
WLAN Standard: IEEE808.11b/g/n
Operation Range Up to 150meters in open space
Security: WEP, TKIP, AES, WPA, WPA2
Printer
Roll Printer(EPSON protocol): RS-232C
Memory
Screen Memory: 128MB
Backup Memory: 512KB
Structure
Panel Cut: 355 x 286
Dimension: 370 x 301 x 36.7
Weight: 4.4kg
Case: AL(Aluminum)
