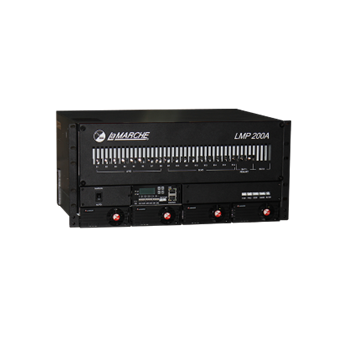

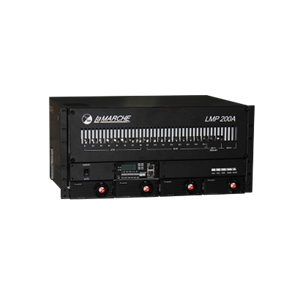

LMP 200A 48V Modular Rectifier

Rectifier

Modular Switchmode Rectifiers

Output :
-42 to -58 VDC, Nominal: -53.5 VDC

Input:
Single-Phase: 176-300 VAC, 208/220/240 VAC
Three-Phase: 380 VAC
Frequency: 50/60 Hz (45 to 66 Hz)

Rated Power:
Rated Output: 12,000W

Applications:
5G / 4G / Datacom
Radio Base Stations/ Cell Sites
Mobile Switching Center (MSC)
Distributed Antenna Systems (DAS)
Microwave Transmission / Switches
Fiber Optics / FTTX
Individual Base Transceiver (BTS)

The La Marche LmPower Series is a compact -48V DC power system with high-performance rectifiers. The pre configured LmPower models are: LMP-100A (1RU), LMP-200A (5RU) and LMP-400A (6RU). LmPower series can be mounted on standard 19” and 23” racks. The LmPower Series utilizes hot swappable high efficiency LmPower R50 1RU 3000W (50A) rectifiers at 96% efficiency.

The LmPower Series offers a robust system controller with an embedded I/O interface equipped with digital inputs, dry contact alarm outputs and temperature sensors input ports. In addition, the system offers intelligent battery management, remote access and a rectifier hibernation/cycling function for increased efficiency.

Standard Features:
50A/48V 1RU Rectifier: Universal AC Input, High Density, High Efficiency, Excellent High Temperature Performance (Full Load @ 50°C).
Wide Operating Temperature Range (-40°C to 65°C).
Hot-Swappable Rectifiers for N+1 Redundancy.
Standard Installation Structure Design, Adapt to Various Applications.
Rectifier Hibernation Function to Help Increase System Efficiency.
Intelligent Battery Management and Protection to Help Prolong Battery Lifespan.
Support Environmental Signal Monitoring and Remote Management Through Dry Contact, Serial Interface or Ethernet Interface (TCP/IP, Web Browser, SNMP).
Load Distribution Breakers With BLVD/LLVD (Low Voltage Battery/Load Disconnect).
