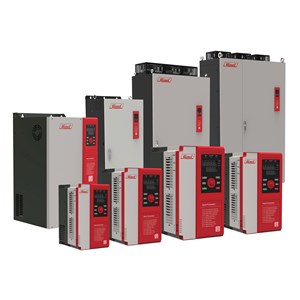

HIMEL INVERTER DRIVE - HAVXS4T2200G2500P 220KW

Inverter

Variable speed drive, EXPERT-Standard, 220 kW, 380 V, 3 phase, standard

Main
Range of product
EXPERT-Standard

Product or component type
Variable speed drive

Product specific application
Advance general purpose

Format of the drive
Standard

Product destination
Asynchronous motors

IP degree of protection
IP20

Type of cooling
Fan

Network number of phases
3 phases

[Us] rated supply voltage
380...440 V - 15...10 %

Motor power kW
220 kW for heavy duty
250 kW for light duty

Motor power hp
295.02 hp for heavy duty
335.25 hp for light duty

Maximum transient current
645 A during 1 min (heavy duty)
774 A during 3 s (heavy duty)
860 A during 0 s (heavy duty)
558 A during 1 min (light duty)
697.5 A during 3 s (light duty)
837 A during 0 s (light duty)

Asynchronous motor control profile
SVC and V/f energy saving ratio

Speed drive output frequency
0…550 Hz

Communication port protocol
Modbus
PROFINET

Complementary
Device application
Speed control

Function available
Automatic voltage regulation (AVR)
Energy saving mode
Fixed and variable swing frequency
Length control
Sagging (multiple inverters drive one load)
Multi-speed operation
Jogging
Adjustable wobble frequency

Supply frequency
50...60 Hz

Maximum voltage unbalance factor
3 %

Continuous output current
430 A heavy duty
465 A light duty

Control type
Manual using keypad
Using control terminal
Using serial port
Three way control using output collector terminals

Efficiency
93 %

Communication service
Read motor parameters automatically

Electrical connection
DC bus sharing

Speed range
1…100 in open-loop mode

Speed accuracy
+/- 0.1 % of nominal speed

Regulation loop
Adjustable PID regulator

Acceleration and deceleration ramps
Linear adjustable separately from 0.1 s...60 h
S-curve adjustable separately from 0.1 s...60 h

Braking to standstill
By DC injection, <30 s

Protection type
Overcurrent
Overvoltage
Undervoltage
Overheating
Overload

Protection technology
Current limiter

Frequency resolution
Digital input: 0.01 Hz
Analog input: 0.55 Hz

Display type
2 x 7-segment LED for 27 parameters

Device mounting
Wall mounted
Enclosure
Flange

Product compatibility
External braking unit
Communication module
I/O extension module

Width
480 mm

Height
1070 mm

Depth
412 mm

Analogue input number
3

Analogue input type
AI1 voltage: 0...10 V, impedance: 100000 Ohm, resolution 12 bits
AI2 voltage: 0...10 V, impedance: 165 Ohm, resolution 12 bits
AI2 current: 0...20 mA, impedance: 165 Ohm, resolution 12 bits
AI3 voltage: differential +/- 10 V, resolution 12 bits

Discrete input number
6

Discrete input type
Programmable (DI1...DI5)
Programmable as pulse input (DI6)

Analogue output number
1

Analogue output type
AO1 voltage/current: 0...20 mA or 0...10 V
AO1 voltage/current: 4...20 mA or 2...10 V

Discrete output number
4

Discrete output type
configurable relay logic 250 V (5 A) for NO relay output circuit
configurable relay logic 250 V (3 A) for NC relay output circuit
open collector 9...30 V (50 mA)

Type of installation
Indoor/outdoor

Application
Material handling machine
Textile machine
Material working machine
Industrial washing machine
Air compressor
Construction elevator
Metal and mining process
Petrochemical
