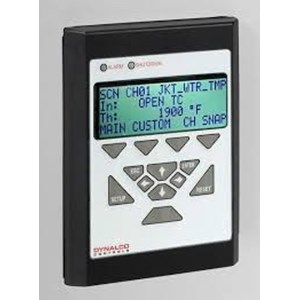

Dynalco SC-2124 24-Channel Universal Scanner

Scanner

The SC-2124™ Series are universal scanners
for continuous monitoring of 24 channels of
temperature, pressure, or any other analog
signal. Modbus communications is an option.

The SC-2124 microprocessor-based Universal
Scanner continually checks temperature, pressure,
or other analog signals and shows them on a large
alphanumeric display.
This multi-informational display indicates both the
value of each channel and any alarm conditions.
Custom-configurable screens allow specific channels
to be displayed and parameters to be entered and
updated.
Four relay outputs are used for alarm, shutdown, and
user-defined functions. Class A, B, or C alarms and
shutdowns are provided.
Modbus communication option allows for remote
monitoring of all channels.

Universal Inputs
z J, K thermocouple; or 2- or 3-wire RTD inputs (with
SC-RTD option).
z 0–5 V inputs that represent temperature, pressure, or
other physical parameters.
z 4–20 mA inputs.
Field-Configuration
Using the front panel keypad the user can
field-configure:
z Input types and units.
z Channel thresholds and trip classes.
z Relay operation modes.
z Remote displays.
A laptop computer can be used for faster
field-configuration.
Remote Displays
Up to eight Dynalco IDM-200™ universal indicator displays
can be connected for constant display of specific scanner
channels.

FEATURES
• Microprocessor-based with communications
for remote monitoring or laptop configuration.
• 24 universal analog input channels configurable
for monitoring thermocouples, voltages, and 4–20
mA inputs.
• Class A, B, or C alarms and shutdowns.
• Open thermocouple and RTD detection.
• Wide DC power range (9–38 Vdc).
• Large 4-row by 20-character alphanumeric
display shows status of all channels along with
channel names.
• Meter Bus (remote display bus): up to eight IDM200 displays for dedicated display of any
channel.
• Ergonomic, sealed-membrane keypad with tactile
feedback.
• Rugged, front-sealed enclosure.
• DB-style connectors for clean, reliable wiring

• Password-protected setup mode.
• CSA Class I, Division 2, Groups A, B, C, & D.
(Standard and Modbus® versions.
SC-2124M
• SC-2124 with Modbus communications.
ACCESSORIES
• SC-CBLE25MM: 6 ft cable & terminal block for
12 inputs
(2 required for 24 input system).
• SC-CBLE25MF: 6 ft cable & terminal block for
relays.
• SC-CBLE15MF: 6 ft cable & terminal block for
power, etc.
ALL MODELS: Options
• SC-RTD: Filtering and conditioning module to
read up to 12 channels of 100 ohm Pt or 120 ohm
Ni RTDs.
• ETS-202: Cold-junction compensation for
thermocouples.
• IDM-200: 33
/8 in. (~85.7 mm) diameter digital
remote display.

SPECIFICATIONS :
Scan Rate New channel every 50 milliseconds during operation
Input Channels • 24 analog input channels fully configurable for:
• J & K thermocouples
• 0–5 V
• 4–20 mA (8 on-board input resistors)
• 100Ω Pt or 120Ω Ni RTDs using SC-RTD optional module
• 0 Accuracy: ± S .2%F
Relay Outputs • 4 relays; SPDT; rated 2.5amps @ 28 Vdc / 125 Vac
Input Power • 8 9 m –3 Vdc, 0.45 amps maximu
Sensor Power • +5 Vdc power for cold-junction temperature sensor, ETS-202
Display/Indicators • Large 4X20 alphanumeric display
• Dedicated alarm and shutdown LEDs
• Backlit display
Communications • RS-232C standard for laptop configuration using Dynalco WinHost software
• Optional SC-2124M has Modbus RTU communications.
Rear Connections • All DB-style connectors on rear of unit
• All field wiring is connected to DIN-RAIL mounted terminal blocks (optional)
Environmental • 4 Operating: – ) °F to +176°F (–20° to +80°C
• NEMA 4 sealed enclosure
