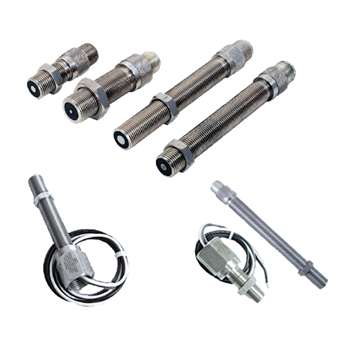

Dynalco M304 Magnetic Pickup

Magnetic Pickup

The Dynalco Magnetic Pickup/Speed Sensor M304 is a high quality speed sensor that features a 3/4-16 thread and a long reach of 5.125 inches. The Dynalco M304 has a standard sensitivity which makes it suitable for high speed (>500 rpm) applications.

PRODUCT SPECIFICATIONS:

Dynalco Part No.: M304
Thread: 3/4-16
Reach: 5.125 inches
Temperature range: -65° to 225°F
Output voltage: 40-65V P-P
DC resistance at 75°F: 80-110 Ohms
Inductance at 1 Khz: 30 MH. NOM.
Output Leads: MATES WITH MS3106A-10SL-4S
Insulation resistance at 500 VDC: 100 MEGOHMS MIN. COIL TO HOUSING
