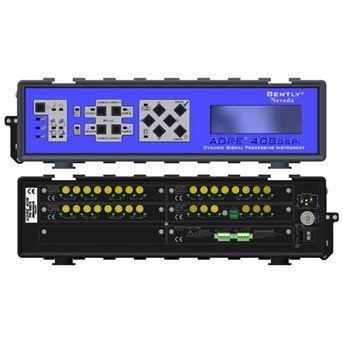

Bently Nevada 168679-01-00-00-02-00-01-01-01-00-02-00 Vibration

Vibration Analyzer

Physical
Weight @ 32 channels 9.5kg (21 lbs) per 408 DSPi Unit (32 channels with power supply)
Environmental 0° to 50°C; 0 to 95% relative humidity (non-condensing)
Mounting Benchtop or optional 19” EIA rack mounting kit
Channel status LEDs Per channel: over-range, NOT OK
Power requirements 110 to 240V 50-60 Hz
Inputs
Number of dynamic channels 8/16/24/32 per chassis
Throughput rate Up to 50 MB/sec system throughput
Transducer inputs Displacement/velocity/acceleration/phase reference/speed
Differential inputs Selectable: true differential or single-ended
Process inputs Programmable: +4 to +20 mA; 0 to +10 Vdc; -12 to +12 Vdc; -25 to +25 Vdc
Voltage input range Programmable lower and upper values from -25 Vdc to +25 Vdc
Gain selections Auto gain between –25 Vdc and +25 Vdc
Input impedance > 700 kΩ
Signal to noise ratio (dynamic range) 110 dB
Frequency span (all channels) Up to 50 kHz – all channels simultaneously
Speed range 1–120k RPM
Speed/trigger input sources Proximity probes, optical sensors, magnetic pickups
Speed input capacity 3/6 physical, 6 simulated (internal)
Trigger sources Multiple “or” voting of speed/time/amplitude/external contacts
Keyphasor multiplier/divider/conditioner/power Integrated (per speed input)
AC/DC coupling Yes; configurable per channel
Channel bandwidth Up to 50 kHz (simultaneous, all channels)
Software
Required software ADRE Sxp, real-time and post-processing
View data from multiple runs simultaneously Yes; unlimited
Yes – unlimited Per keyphasor
Instrument mode display update 100 ms/sample (max)
Communications Integrated 10/100/1000 Mb Ethernet TCP/IP
LAN/WAN support Yes; specially designed for firewall management
Remote operation via LAN/WAN Yes
Security Administrative/read only/no access
Signal conditioning
A to D resolution 24 bit
Filtering High-/low-pass: selectable; Bandpass: 2-, 4-, 6-, 8-pole selectable
Tracking filters Realtime; up to 6 nX per channel
Tracking filter bandwidth Configurable: 1.2/12/120 CPM; constant bandwidth auto-switching
Auto switching tracking filters Selectable
Sub-synchronous nX tracking Configurable; 0.1 to nX (in .01X increments)
nX vectors Configurable; up to four different vectors
Sampling
• Simultaneous processed and raw data (all channels)
• Multiple simultaneous sampling rates (synch and asynch)
• Delta sampling for RPM, time
• Synchronous sampling configurable for 2 rates per channel
• Continuous and discrete (configurable)
• Realtime simultaneous synchronous and asynchronous
Synchronous sampling rates 16/32/64/128/256/360/512/720/1024 samples per revolution
Hardware generated time synchronous averaging Up to 2048 samples per waveform, up to 512 Averages
i.e., (8 revs @ 256 samples/rev), (4 revs @ 512 samples/rev)
Anti-aliasing FIR Filter (passband @ 50 kHz, – 100 dB @ 64 kHz)
Waveforms 4 per channel simultaneously (user-configurable) + Raw
Spectral resolution Configurable; up to 6400 lines (all channels simultaneously)
True zoom capabilities Yes
Recording
Data storage capacity Internal: 480 GB or 960 GB solid state drive
Pre- and post-event data capture Yes; configuration dependant
Vector-to-waveform storage ratio n:1 configurable
Continuous digital recording Yes; internal
Outputs
Speed/trigger outputs 3/6 digital and analog conditioned
