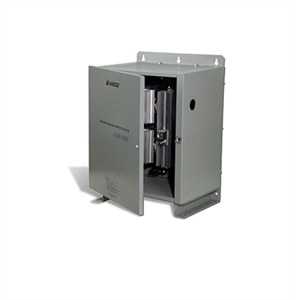

ARBS Battery Selector

Battery Charger

Automatic Redundant Battery Selector

Nominal Voltage:
Up to 300 VDC

Rated Inrush Current:
500, 1000, 1600, 2600, 3000, and 4800 Amps
(per NFPA 110)

Continuous DC Ratingt:
50, 85, 100, 150, and 200 Amp

Applications:
Engine Starting
Switchgear/Industrial

Standby generators occasionally fail to start due to weak or dead cranking batteries. The La Marche ARBS is a solid state device that controls redundant power for the engine starter. Our product is designed with high powered diodes to select the higher voltage of the two isolated DC power sources. The ARBS selects power from the best available battery while isolating the alternate battery bank. The special heat sink diode assembly is manufactured to handle high output requirements The diodes in the ARBS allows the starter motor cranking current to flow from the battery to the starter.

Standard Features:

Fully Automatic
Convection Cooled
Isolation From One Battery to Another
Diodes Designed to Carry 100% of the Starter/Load
Surge Protection
Two Diodes, Common Cathode
Finish - ANSI - 61 gray paint
1 Year Warranty
Optional Features:

65F - Alternator Battery Recharge Option
